Overview

This section describes a temporary method for exporting feature flag usage data and experiment events to your preferred data store or warehouse. This allows you to analyze the data using your own tools and systems.

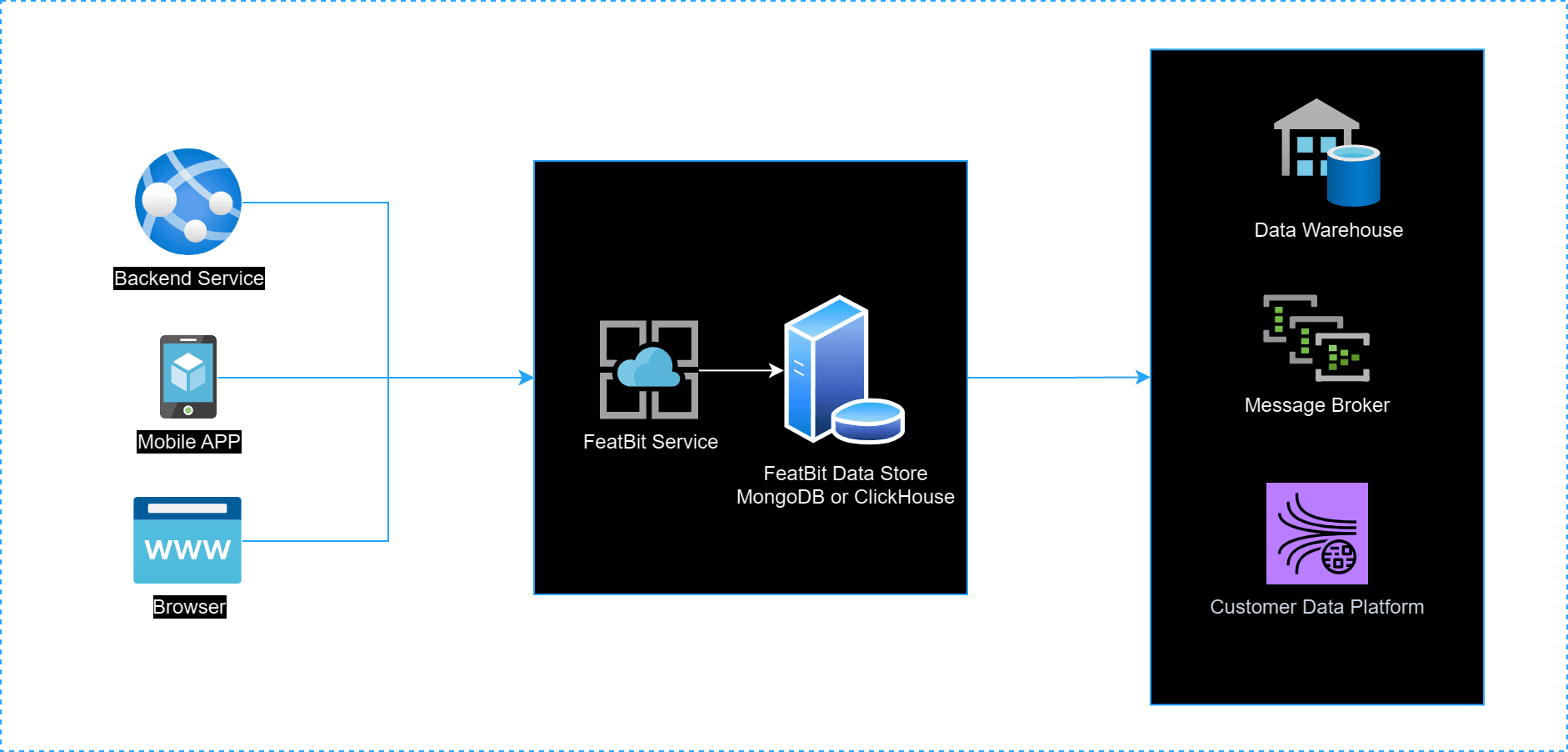

As the diagram above shows, the current process involves extracting data from FeatBit's ClickHouse database (or MongoDB for the standard version) and then transferring it to a third-party or your own Custom Data Platform, Message Brokers, Data Warehouse, etc.

We refer to this as the 'temporary method' because it's an interim measure while we better understand the specific needs and best practices of each customer. We invite you to join our Slack (opens in a new tab) channel for further discussion on this topic, or you can email us at contact@featbit.co for more information.

Extract Data From ClickHouse

Data Store

In the Pro version of FeatBit, we store data related to feature flag usage and custom experiment events in the ClickHouse database. For those using the Standard version, this information, along with insights on feature flag evaluations, is housed in the MongoDB database. You can access data from these databases.

• Feature Flag Usage Data: Each time a feature flag is evaluated for a user (whether in the backend SDK or frontend SDK), a record is created in the database. The data in the insights view on your feature flag page are derived from these records.
• Experiment Events: These are custom events for metrics like button click events, page stay duration, or any Boolean or Double values you track for further data analysis needs. These events are created by calling the track method in the SDK.

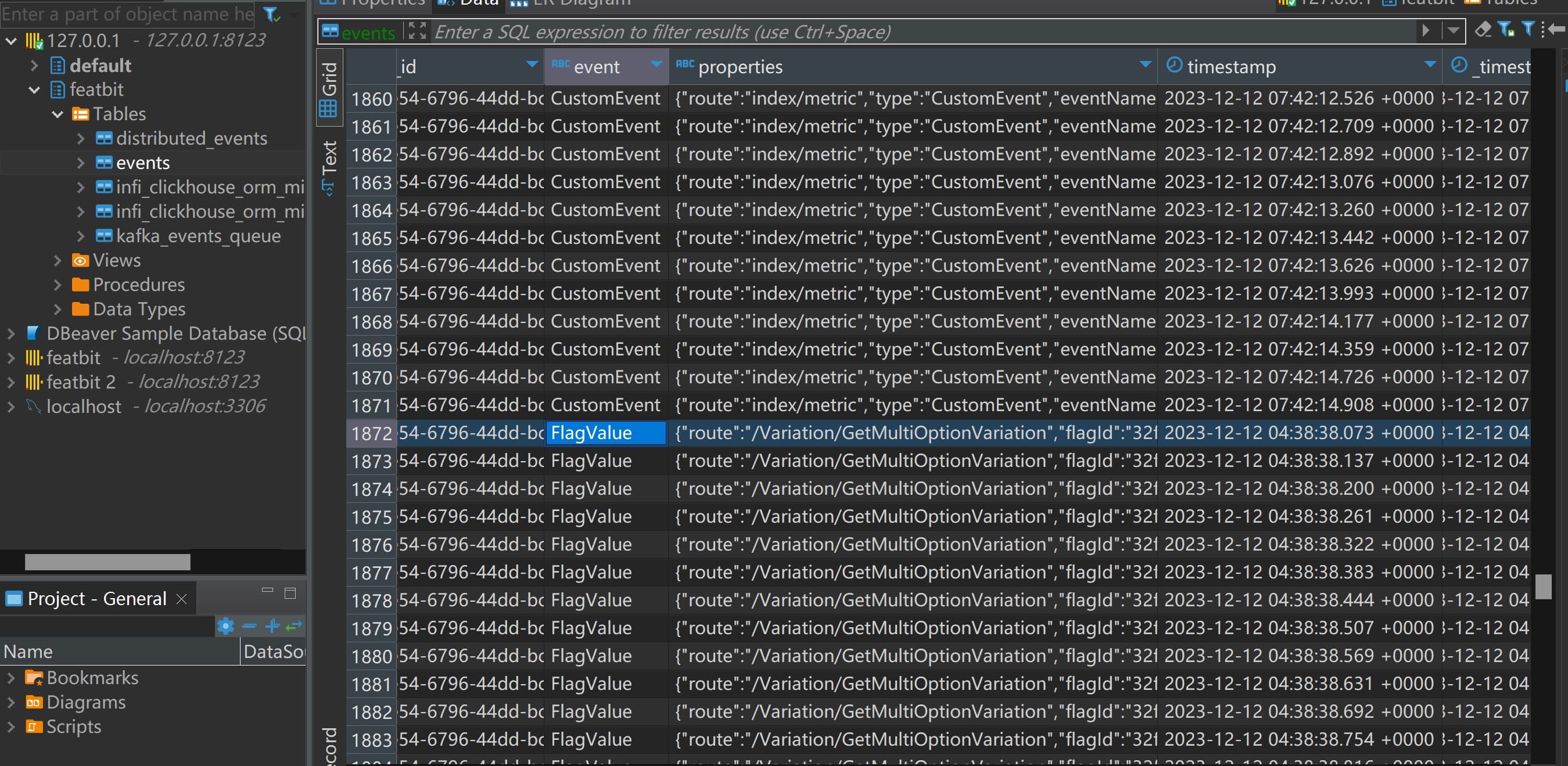

For the FeatBit Pro version, both types of data are stored in the events table in ClickHouse.

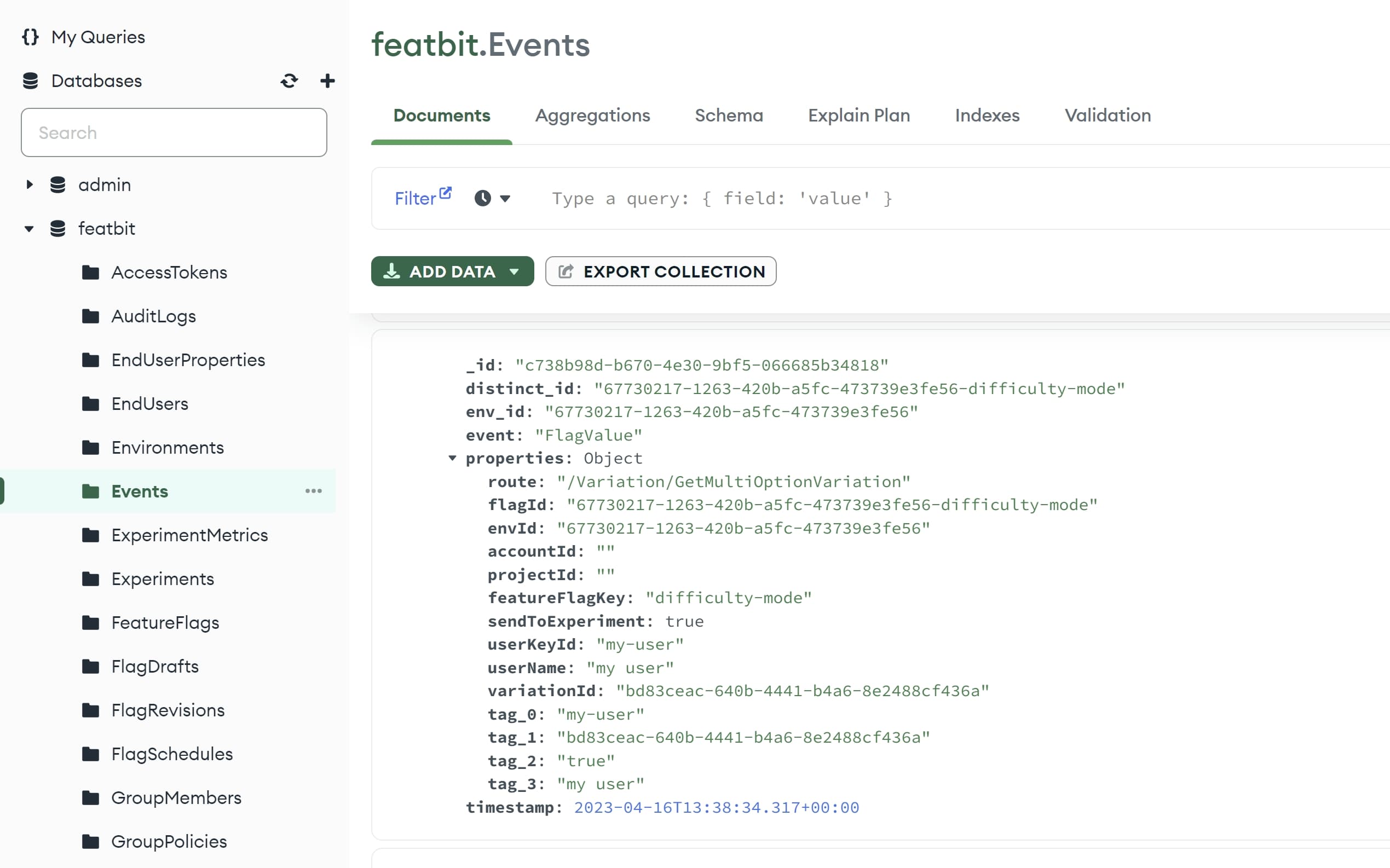

For the FeatBit Standard version, both types of data are stored in the Events collection in MongoDB.

The data structures are not exactly the same between the FeatBit Pro and Standard versions. However, the data are similar. The following table explains what each property means.

Feature Flag Usage Data

Feature Flag Usage Data: Each time a feature flag is evaluated for a user (whether in the backend SDK or frontend SDK), a record is created in the database. The data in the insights view on your feature flag page are derived from these records.

This is a ClickHouse query statement that I have refined:

SELECT
    uuid as Id,
    env_id as EnvId,
    distinct_id as DistinctId,
    event as EventName,
    timestamp as Timestamp,
    _timestamp as CHTimestamp,
    JSONExtract(properties, 'route', 'String') as Route,
    JSONExtract(properties, 'flagId', 'String') as FeatureFlagId,
    JSONExtract(properties, 'accountId', 'String') as AccountId,
    JSONExtract(properties, 'projectId', 'String') as ProjectId,
    JSONExtract(properties, 'featureFlagKey', 'String') as FeatureFlagKey,
    JSONExtract(properties, 'sendToExperiment', 'Bool') as SendToExperiment,
    JSONExtract(properties, 'userKeyId', 'String') as UserId,
    JSONExtract(properties, 'userName', 'String') as Username,
    JSONExtract(properties, 'variationId', 'String') as VariationId,
    JSONExtract(properties, 'tag_0', 'String') as Tag0,
    JSONExtract(properties, 'tag_1', 'String') as Tag1,
    JSONExtract(properties, 'tag_2', 'String') as Tag2,
    JSONExtract(properties, 'tag_3', 'String') as Tag3
FROM events
WHERE
    timestamp > '{Your TimeStamp}' AND
    event = 'FlagValue' AND
    env_id = '{Your FeatBit Environment Id}'
ORDER BY timestamp
LIMIT {Your Page Size}

Experiment Events

Experiment Events: These are custom events for metrics like button click events, page stay duration, or any Boolean or Double values you track for further data analysis needs. These events are created by calling the track method in the SDK.

This is a ClickHouse query statement that I have refined:

SELECT
    uuid as Id,
    env_id as EnvId,
    distinct_id as DistinctId,
    event as EventName,
    timestamp as Timestamp,
    _timestamp as CHTimestamp,
    JSONExtract(JSONExtract(properties, 'user', 'String'), 'keyId', 'String')  as UserId,
    JSONExtract(JSONExtract(properties, 'user', 'String'), 'name', 'String')  as Username,
    JSONExtract(properties, 'route', 'String') as Route,
    JSONExtract(properties, 'eventName', 'String') as CustomEventName,
    JSONExtract(properties, 'numericValue', ' Float32') as NumericValue,
    JSONExtract(properties, 'applicationType', ' String') as ApplicationType,
    JSONExtract(properties, 'projectId', 'String') as ProjectId,
    JSONExtract(properties, 'accountId', 'String') as AaccountId,
    JSONExtract(properties, 'tag_0', 'String') as Tag0,
    JSONExtract(properties, 'tag_1', 'String') as Tag1,
    JSONExtract(properties, 'tag_2', 'String') as Tag2,
    JSONExtract(properties, 'tag_3', 'String') as Tag3
FROM events
WHERE
    timestamp > '{Your TimeStamp}' AND
    event = 'CustomEvent' AND
    env_id = '{Your FeatBit Environment Id}'
ORDER BY timestamp
LIMIT {Your Page Size}

Sample Project

I have used .NET 8 to write a sample project for extracting data from ClickHouse. The source code can be found here (opens in a new tab).

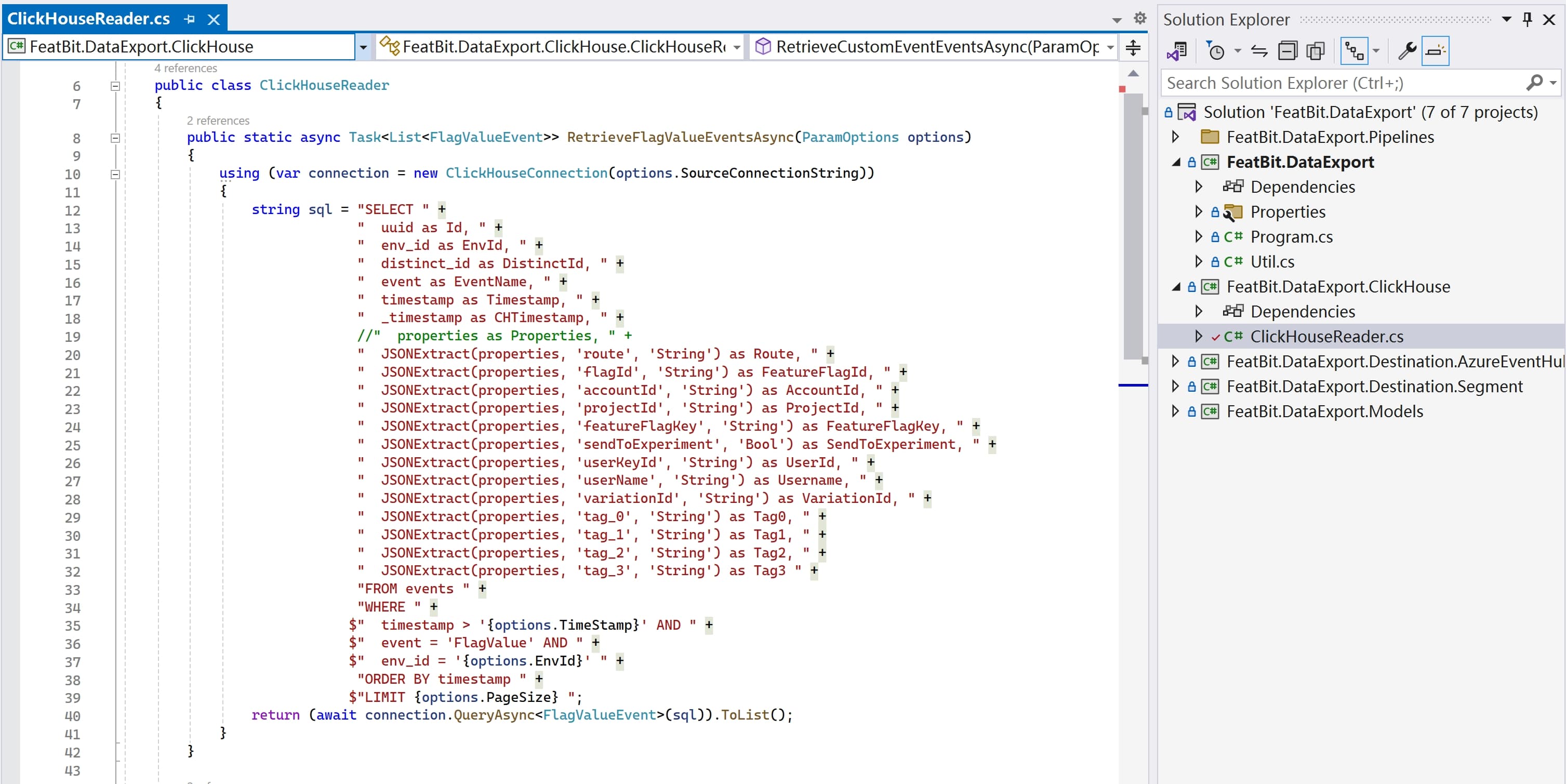

In this sample solution, the project FeatBit.DataExport.ClickHouse provides two functions in the ClickHouseReader class:

• RetrieveFlagValueEventsAsync: This function retrieves feature flag usage data from ClickHouse.
• RetrieveCustomEventEventsAsync: This function retrieves experiment events from ClickHouse.

Export Data to Segment

Source: HTTP API

You can send data to Segment through HTTP APIs. First, you need to create an HTTP API as a data source in Segment.

• Go to the "Source" page, click on the + Add source button.
• In the "Catalog" page, search "HTTP API". Then click on the source.
• Click on the Add Source -> button.
• On the "Add Source" page, enter the name of the source, then click on the Add Source button.
• After the source is created, go to Settings page, enable the source, and then click on the Save Changes button.

Destination

In Segment, you can add any destination you desire. For example, you can add Snowflake as a destination. For more information, you can follow the tutorial (opens in a new tab).

Sending data to Segment

To send data to Segment via the HTTP API, you can follow the tutorial (opens in a new tab). Essentially, you will need to call two APIs:

• identify lets you tie a user to their actions and record traits about them. It includes a unique User ID and any optional traits you know about them. Segment recommends calling identify a single time when the user’s account is first created, and only identifying again later when their traits change.
• track lets you record the actions your users perform. Every action triggers an “event”, which can also have associated properties.

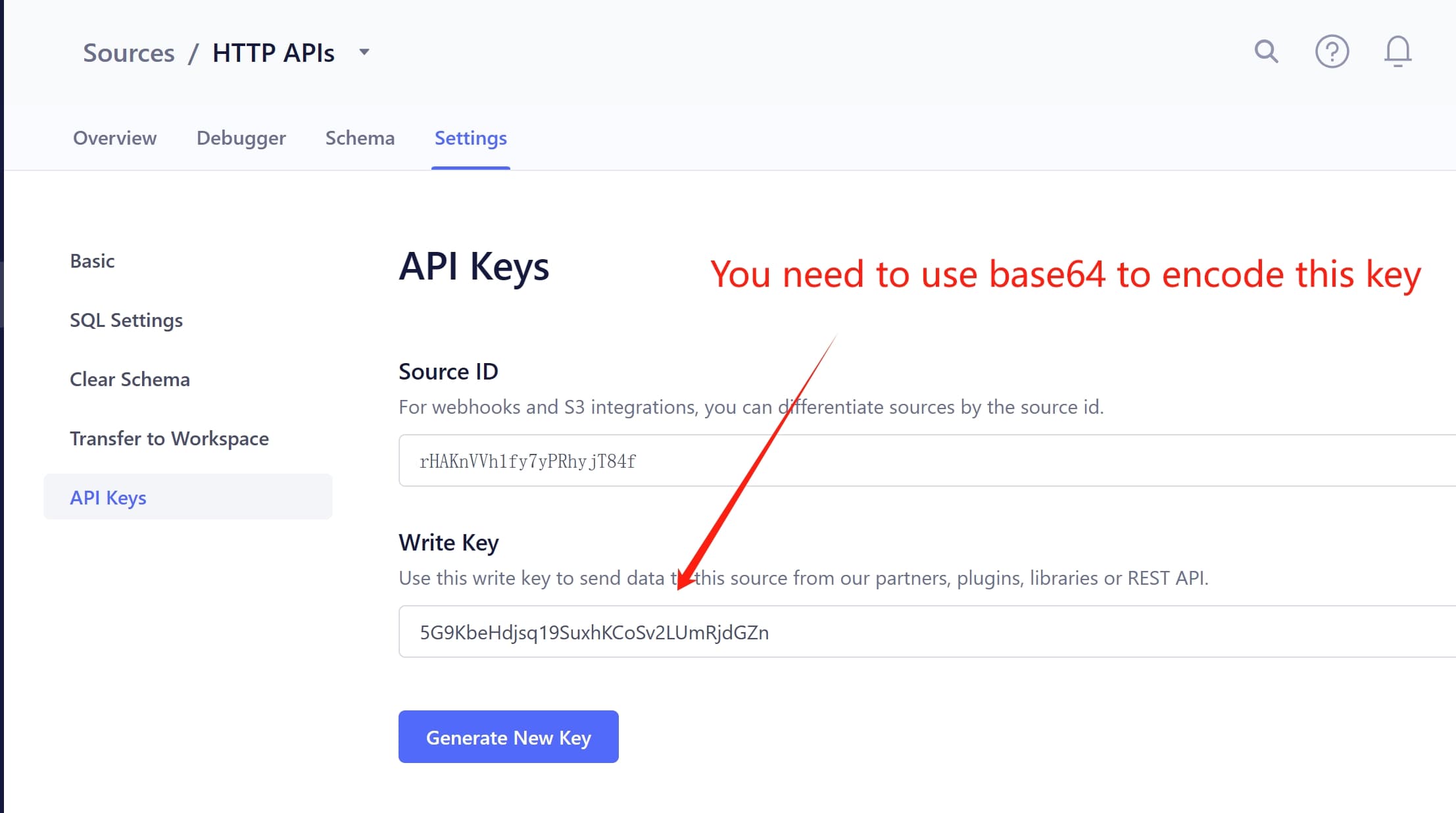

Before we send data through these APIs, you first need to obtain the write key for the Segment destination. You can find the write key on the "Settings" page of each.

Next, we need to send the data we retrieved in the previous step to Segment through HTTP APIs. Below is an example of how to use identify and track APIs to send FeatBit feature flag usage data to Segment.

# Identify
curl --location --request POST 'https://api.segment.io/v1/identify' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer NUc5S2JlSGRqc3ExOVN***Fake***JMVW1SamRHWm4=' \
--data-raw '{
  "Id": "4be3e7b9-3db7-4537-8e46-b2831f579bcf",
  "userId": "tester-id-6973",
  "EnvId": "32f6be54-6796-44dd-bc82-f4824b0da13c",
  "FeatBitTimestamp": "2023-12-12T07:42:13.32Z",
  "EventName": "FlagValue",
  "CHTimestamp": "2023-12-12T07:42:14Z",
  "Username": "tester-6973"
}'

########

# Track
curl --location --request POST 'https://api.segment.io/v1/track' \
--header 'Authorization: Bearer NUc5S2JlSGRqc3ExOVN***Fake***JMVW1SamRHWm4=' \
--header 'Content-Type: application/json' \
--data-raw '{
  "Id": "4be3e7b9-3db7-4537-8e46-b2831f579bcf",
  "userId": "tester-id-6973",
  "EnvId": "32f6be54-6796-44dd-bc82-f4824b0da13c",
  "FeatBitTimestamp": "2023-12-12T07:42:13.32Z",
  "VariationId": "7e03db60-7605-4428-a972-aa3b66a3f898",
  "DistinctId": "32f6be54-6796-44dd-bc82-f4824b0da13c-growthbook-test-001",
  "EventName": "FlagValue",
  "CHTimestamp": "2023-12-12T07:42:14Z",
  "Route": "/Variation/GetMultiOptionVariation",
  "FeatureFlagId": "32f6be54-6796-44dd-bc82-f4824b0da13c-growthbook-test-001",
  "AccountId": "",
  "ProjectId": "",
  "FeatureFlagKey": "growthbook-test-001",
  "SendToExperiment": true,
  "Username": "tester-6973",
  "Tag0": "tester-id-6973",
  "Tag1": "7e03db60-7605-4428-a972-aa3b66a3f898",
  "Tag2": "true",
  "Tag3": "tester-6973"
}'

Sample Project

I have used .NET 8 to write a sample project for sending data to Segment. The code is available here (opens in a new tab).

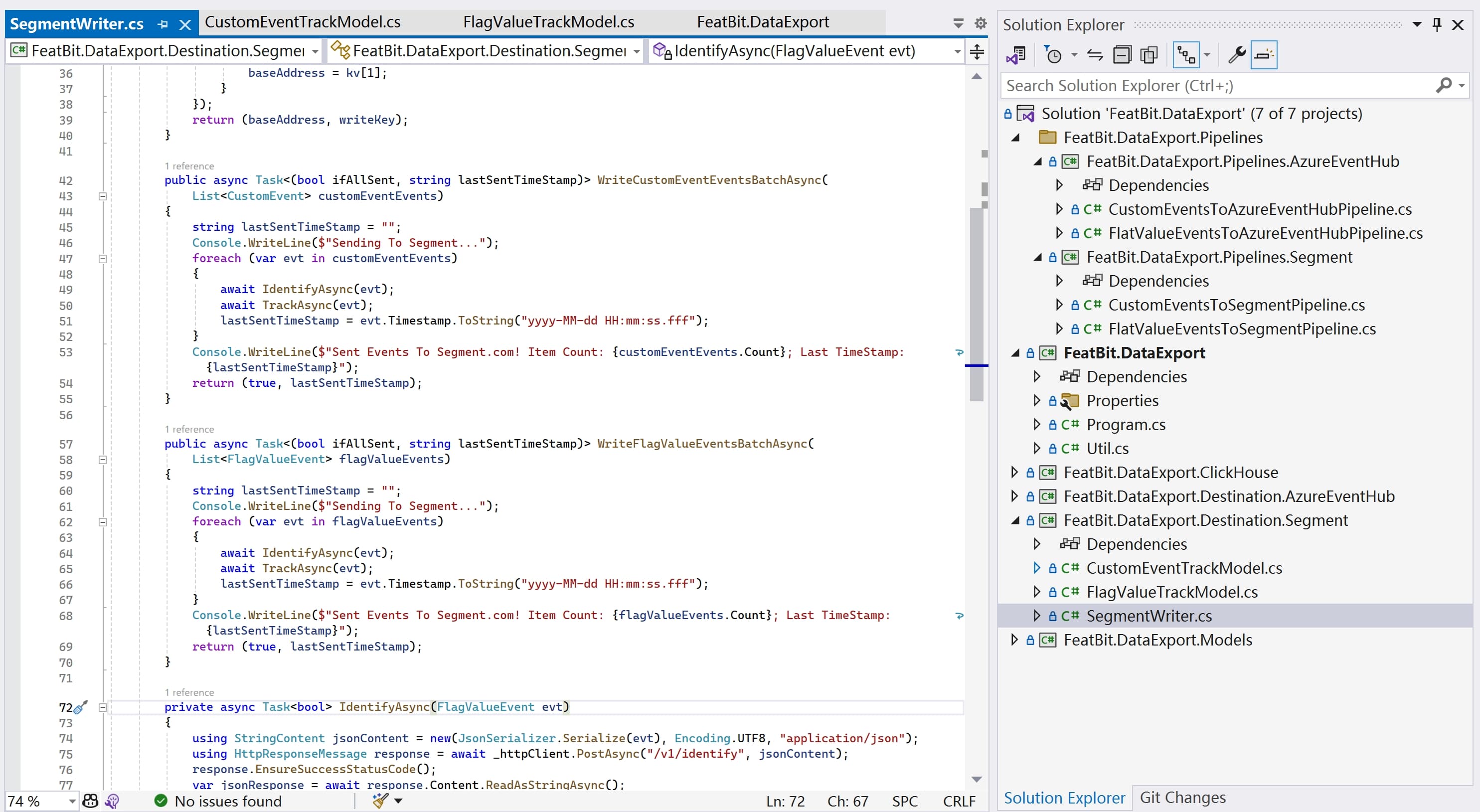

In this sample solution, the project FeatBit.DataExport.Destination.Segment contains code for:

• Sending Feature Flag Usage Data (data type 'FlagValue') to Segment via HTTP API.
• Sending Experiment Events (data type 'CustomEvent') to Segment via HTTP API.

The project FeatBit.DataExport.Pipelines.Segment demonstrates two pipelines for querying data from ClickHouse and then sending it to Segment.

• The CustomEventsToSegmentPipeline class queries experiment metric events from ClickHouse and then sends them to Segment.

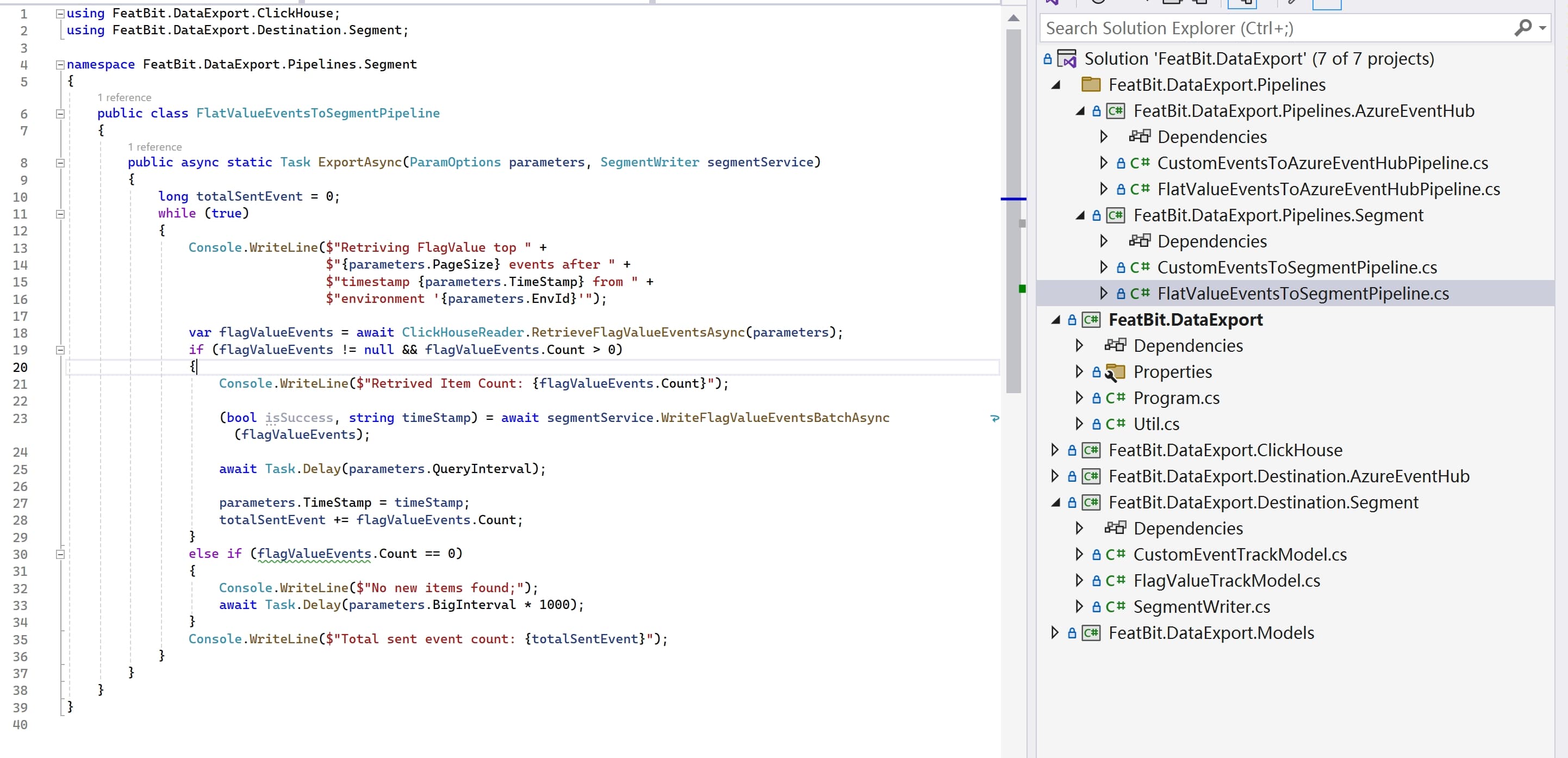

• The FlatValueEventsToSegmentPipeline class queries feature flag usage data from ClickHouse and then sends it to Segment.

You can run the FeatBit.DataExport project with arguments to execute these pipelines. Below are some examples:

Running the pipeline for exporting Feature Flag Usage Data to Segment:

./FeatBit.DataExport -e "32f6be54-6796-44dd-bc82-f4824b0da13c" -t "2023-12-12 07:41:51.288" -c "Host=127.0.0.1;Protocol=http;Port=8123;Database=featbit" -g "WriteKey=NUc5S2JlS***FAKE******Fake***JMVW1SamRHWm4=;Host=https://api.segment.io" -s 1000 -i 100 -b 5 --eventtype "CustomEvent" --pipeline "CustomEventToSegment"

Running the pipeline for exporting Experiment Metric Events to Segment:

./FeatBit.DataExport -e "32f6be54-6796-44dd-bc82-f4824b0da13c" -t "2023-12-12 07:42:13.288" -c "Host=127.0.0.1;Protocol=http;Port=8123;Database=featbit" -g "WriteKey=NUc5S2JlS***FAKE******Fake***JMVW1SamRHWm4=;Host=https://api.segment.io" -s 1000 -i 100 -b 5 --eventtype "CustomEvent" --pipeline "FlagValueToSegment"

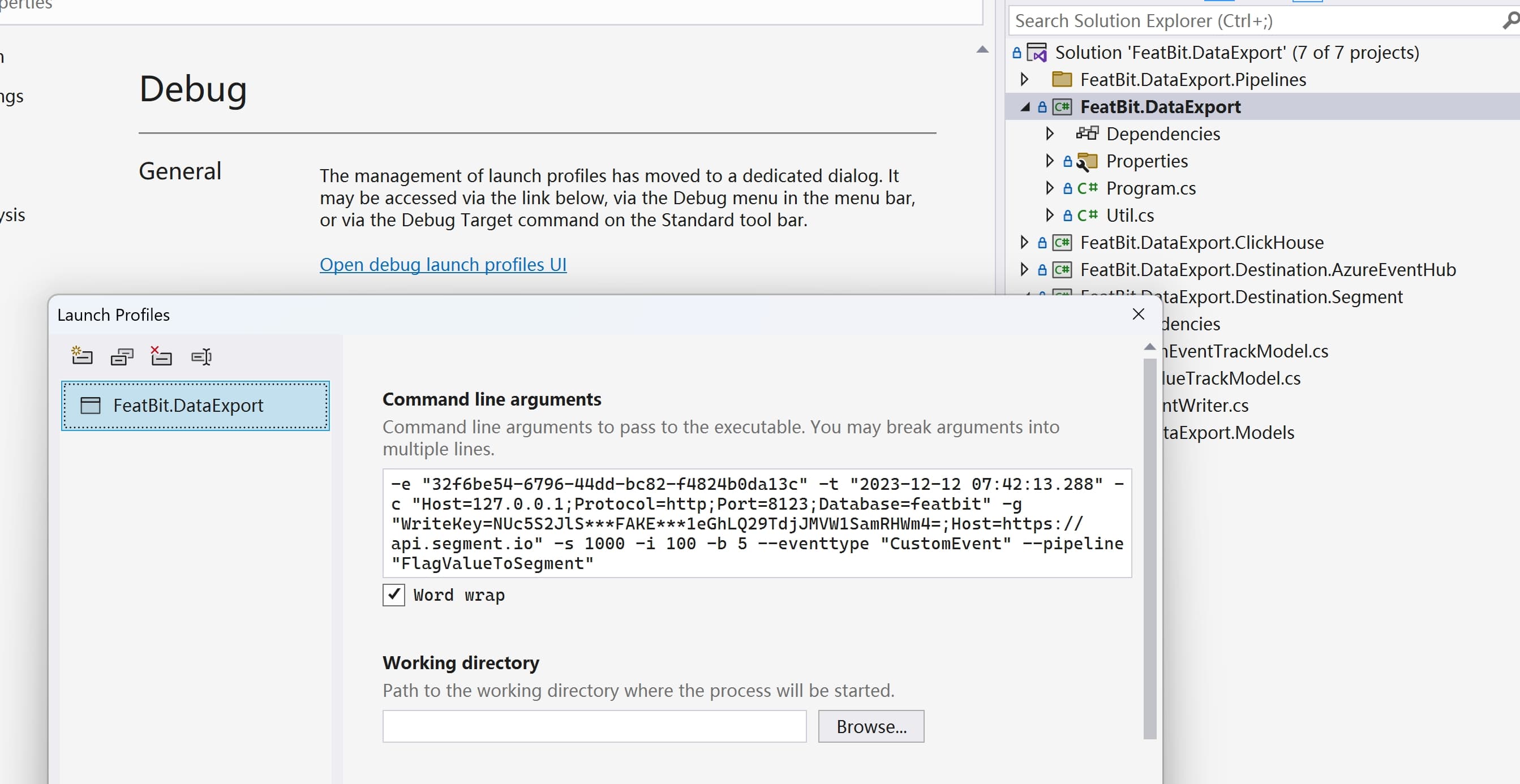

Alternatively, you can copy the initial arguments in Visual Studio's Debug settings.

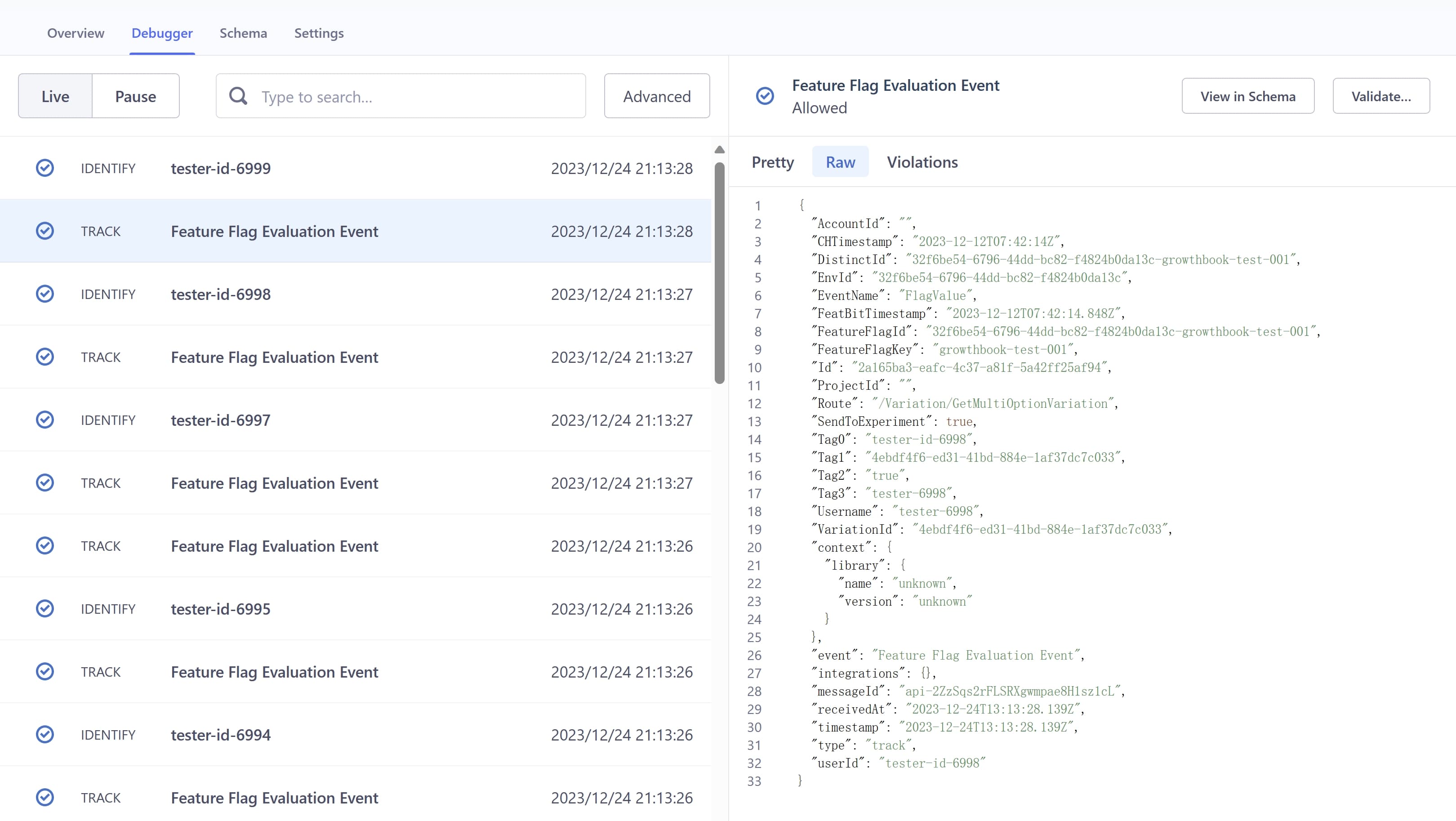

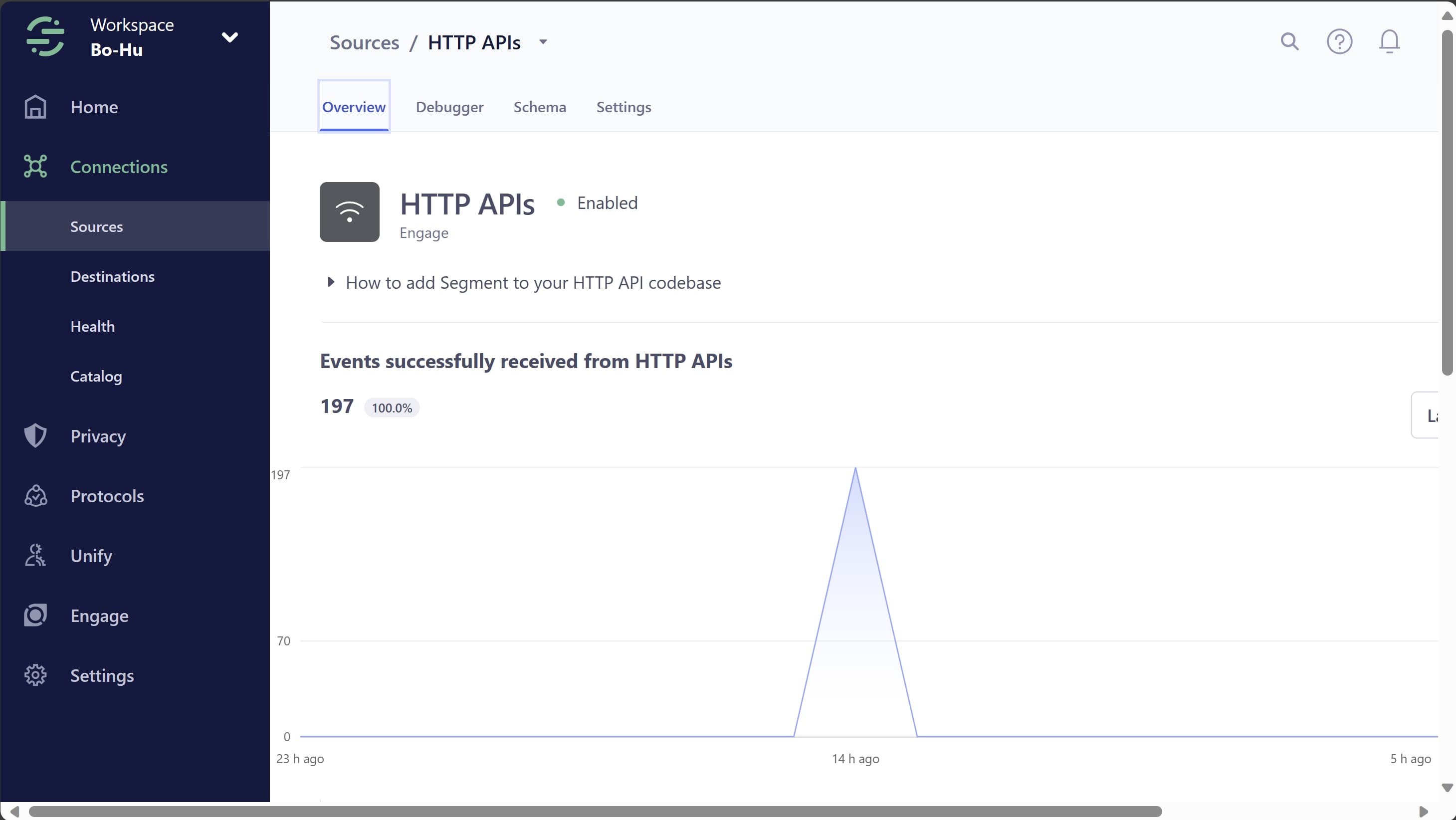

Once you successful sent the data to Segment, you will see the record in Debugger panel.

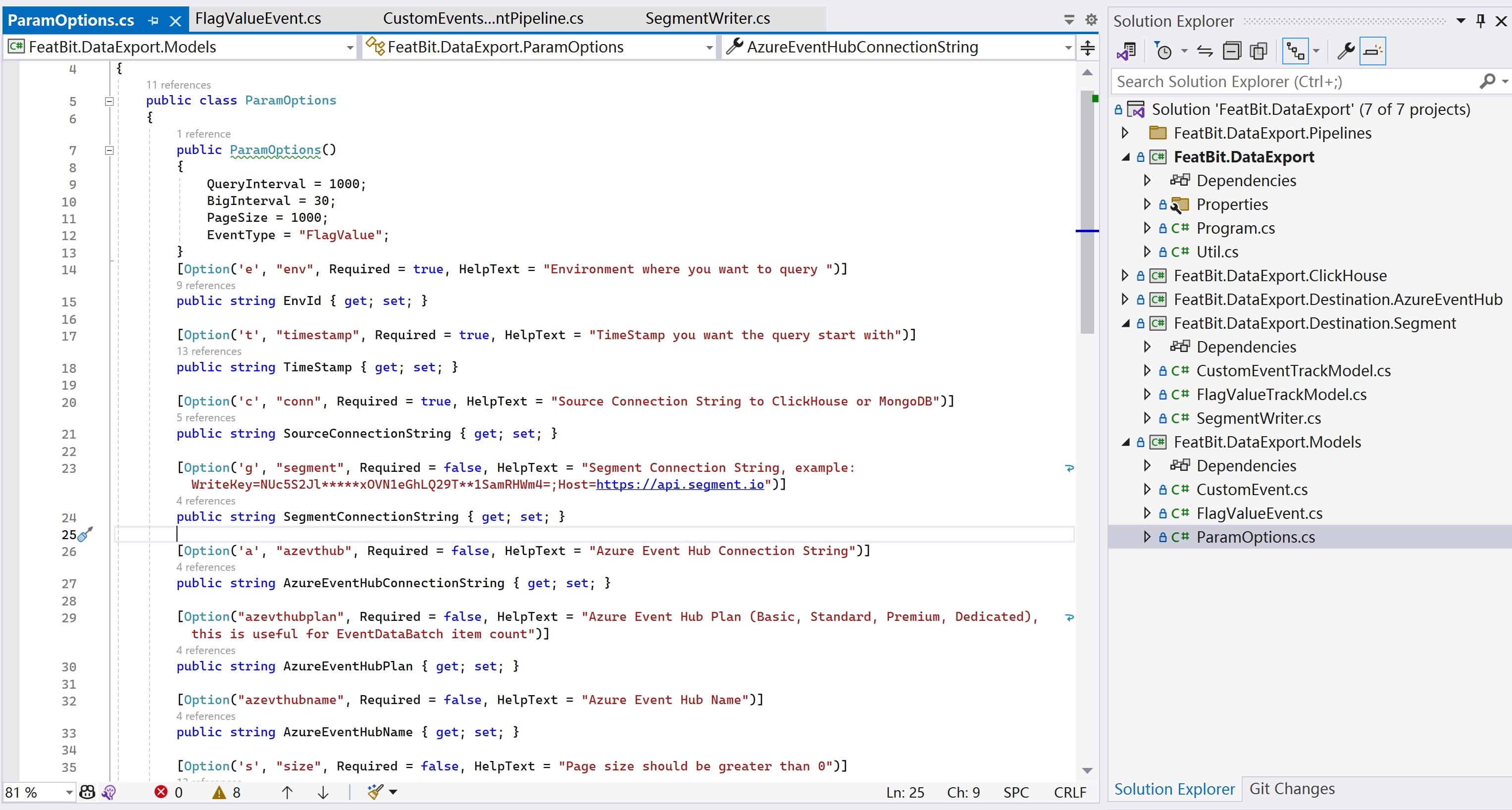

The definitions of the parameters can be found in the sample project below:

Export To Azure Event Hub

Prerequisites

Before sending data to Azure Event Hub, you will need to:

1. Have an Azure Account.
2. Create an Azure Event Hub Namespace and an Event Hub. Optionally, you can also create a Shared Access Policy for the Event Hub.
3. Optionally, create an Azure Storage Account and a Blob Container to capture the data sent to the Event Hub.

We assume that you have already completed the above steps. If not, please follow the tutorial (opens in a new tab).

Sending data to Event Hub

To send data to Azure Event Hub, you can follow this tutorial (opens in a new tab). Choose the SDK corresponding to your programming language to facilitate data transmission to Azure Event Hub.

Sample Project

I have used .NET 8 to write a sample for sending data to Azure Event Hub. The code is available here (opens in a new tab).

In this sample solution, the project FeatBit.DataExport.Destination.AzureEventHub contains code for:

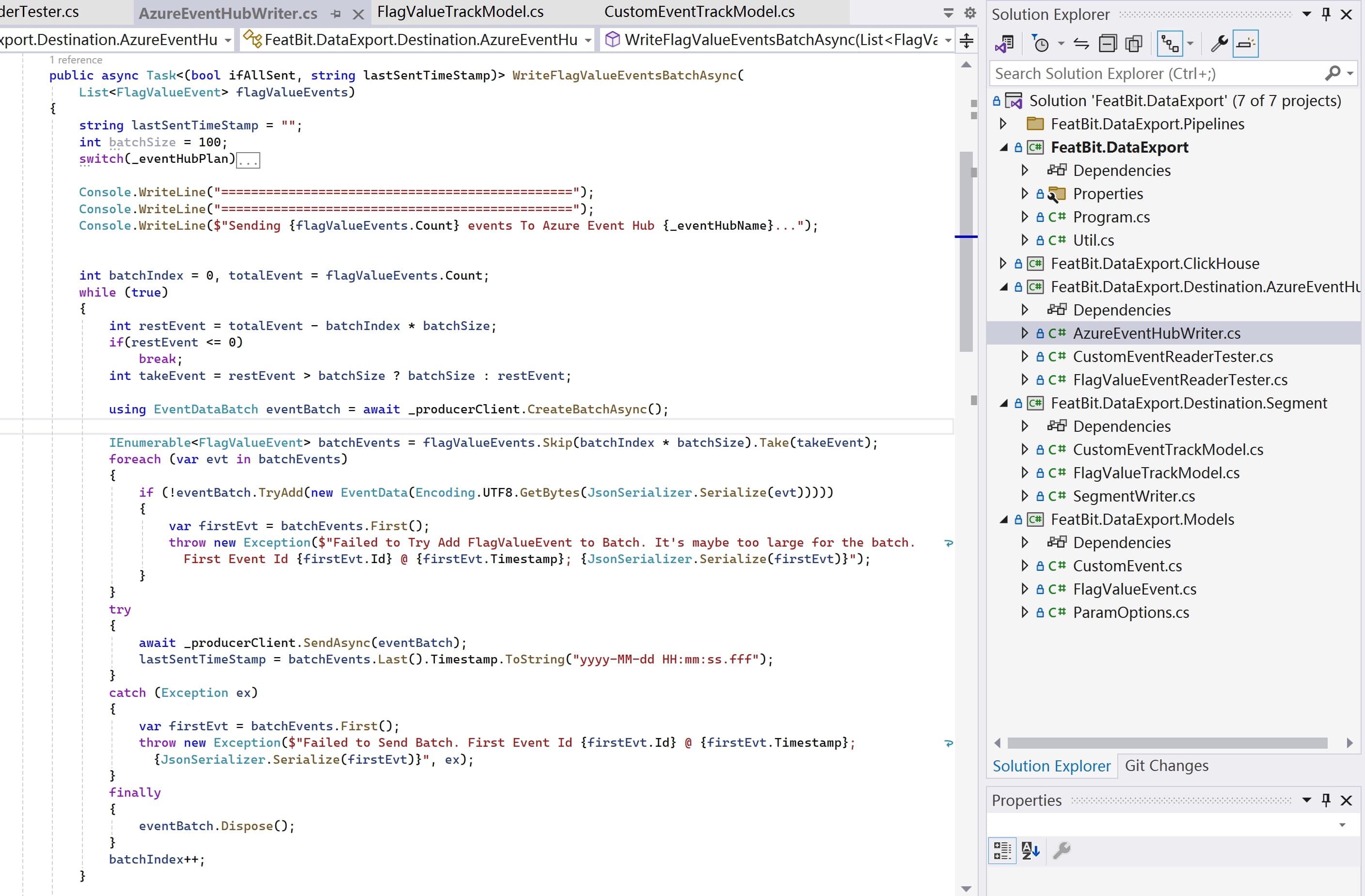

• The WriteFlagValueEventsBatchAsync in AzureEventHubWriter class: Sending Feature Flag Usage Data (data type 'FlagValue') to Event Hub.
• The WriteCustomEventEventsBatchAsync in AzureEventHubWriter class: Sending Experiment Events (data type 'CustomEvent') to Segment via HTTP API.

The code use .NET SDK to send batch events to the Azure Event Hub.

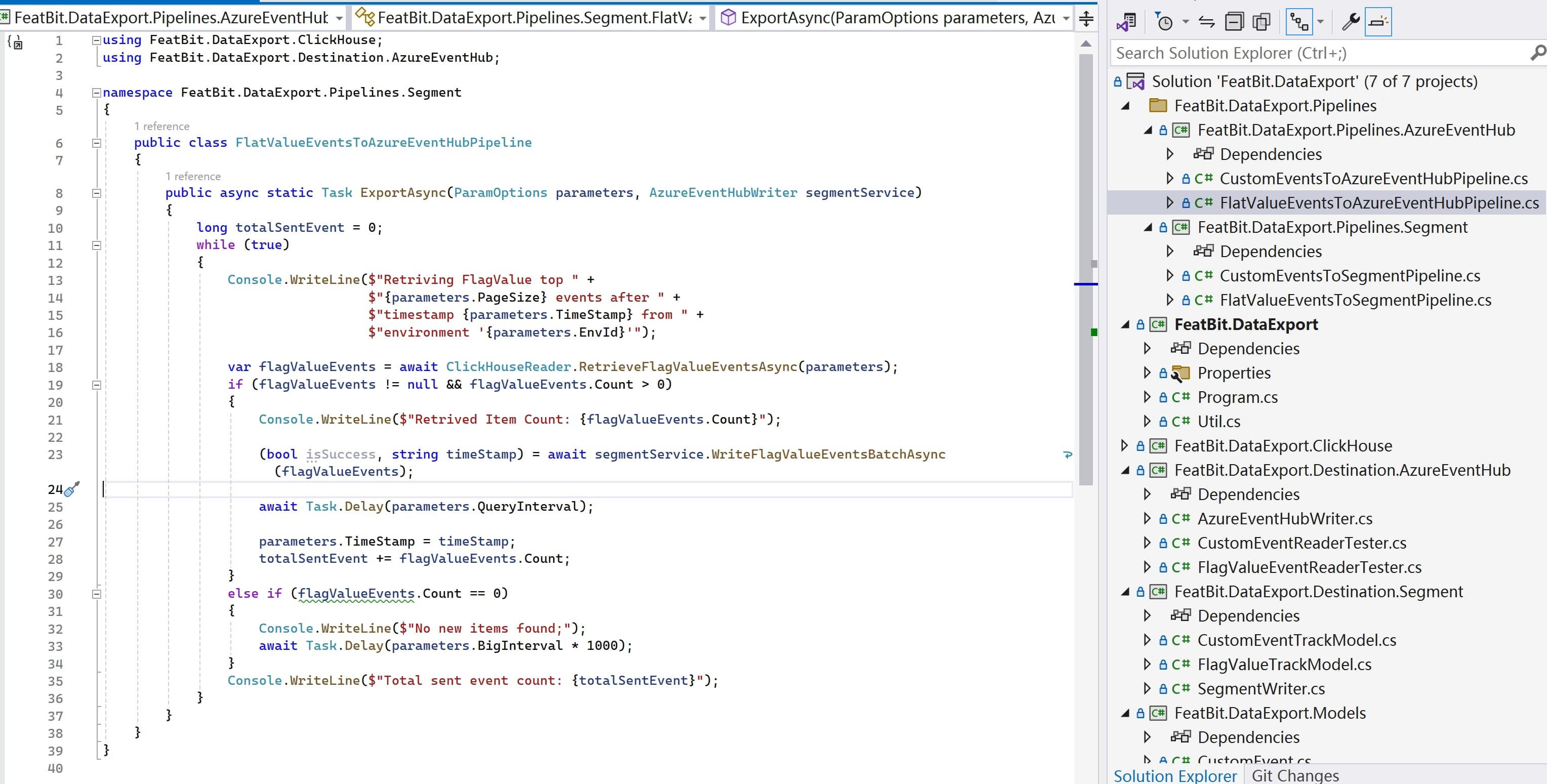

The project FeatBit.DataExport.Pipelines.AzureEventHub demonstrates two pipelines for querying data from ClickHouse and then sending it to Azure EventHub.

• The CustomEventsToAzureEventHubPipeline class queries experiment metric events from ClickHouse and then sends them to Event Hub.
• The FlatValueEventsToAzureEventHubPipeline class queries feature flag usage data from ClickHouse and then sends it to Event Hub.

You can execute these pipelines by running the FeatBit.DataExport project with specific arguments. Here are some examples:

Running the pipeline for exporting Feature Flag Usage Data to Azure Event Hub:

./FeatBit.DataExport -e "32f6be54-6796-44dd-bc82-f4824b0da13c" -t "2023-12-12 07:42:13.288" -c "Host=127.0.0.1;Protocol=http;Port=8123;Database=featbit" -s 1000 -i 100 -b 5 -a "Endpoint=sb://featbitexportdata.servicebus.windows.net/;SharedAccessKeyName=flagvalueevents;SharedAccessKey=Q0sXMCyF***FAKE***Yz/kUnGu1wAbjeRnB+AEhJIzHhU=" --azevthubplan "Basic" --azevthubname "flagvaluecapture" --eventtype "CustomEvent" --pipeline "FlagValueToAzureEventHub"

Running the pipeline for exporting Experiment Metric Events to Azure Event Hub:

./FeatBit.DataExport -e "32f6be54-6796-44dd-bc82-f4824b0da13c" -t "2023-12-12 07:41:51.288" -c "Host=127.0.0.1;Protocol=http;Port=8123;Database=featbit" -s 1000 -i 100 -b 5 -a "Endpoint=sb://featbitexportdata.servicebus.windows.net/;SharedAccessKeyName=flagvalueevents;SharedAccessKey=Q0sXMCyF***FAKE***Yz/kUnGu1wAbjeRnB+AEhJIzHhU=" --azevthubplan "Basic" --azevthubname "flagvaluecapture" --eventtype "CustomEvent" --pipeline "CustomEventToAzureEventHub"

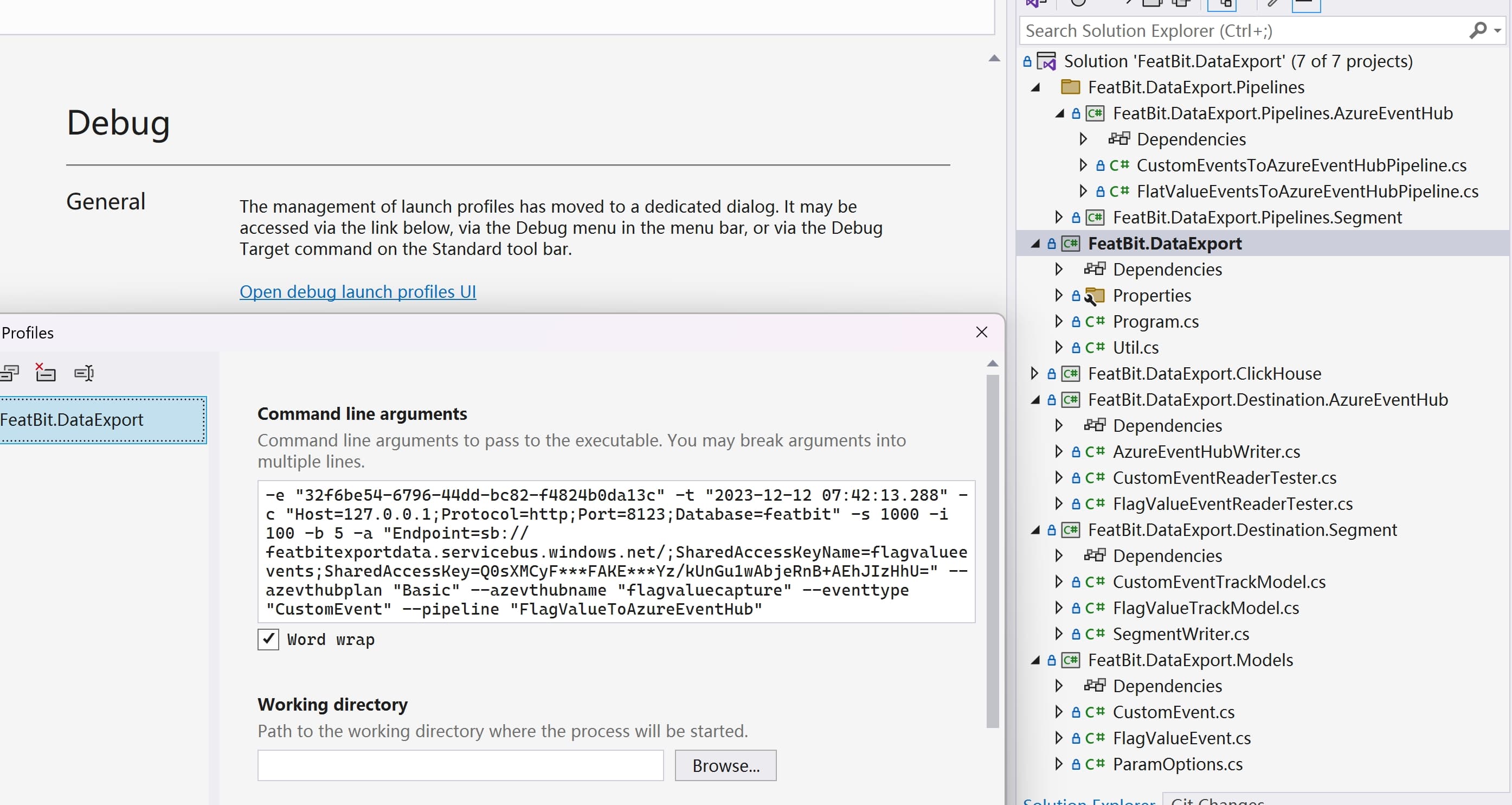

Alternatively, you may copy the initial arguments into Visual Studio's Debug settings.

To verify whether the data has been sent successfully, you have two options:

1. Check the Azure Storage Account and Blob Container (or by using other Azure Data Service) to see if the data has been captured correctly.
2. Use the code I provided in the sample project to read the data from Azure Event Hub, as shown in the figure below.

Feedback

We welcome any feedback and suggestions for features, such as:

• Creating a native data export feature in FeatBit for Segment.com and Azure Event Hub.
• Enabling data export to other Customer Data Platforms (CDPs), Data Warehouses, and Message Brokers.
• Export Data via REST APIs.
• Incorporating the ability to send data to third-party tools in SDK's evaluation callbacks.
• And more.

Please let us know your thoughts by sending us an email at contact@featbit.co or by joining our Slack (opens in a new tab) channel. We appreciate any practical suggestions that may assist you.
